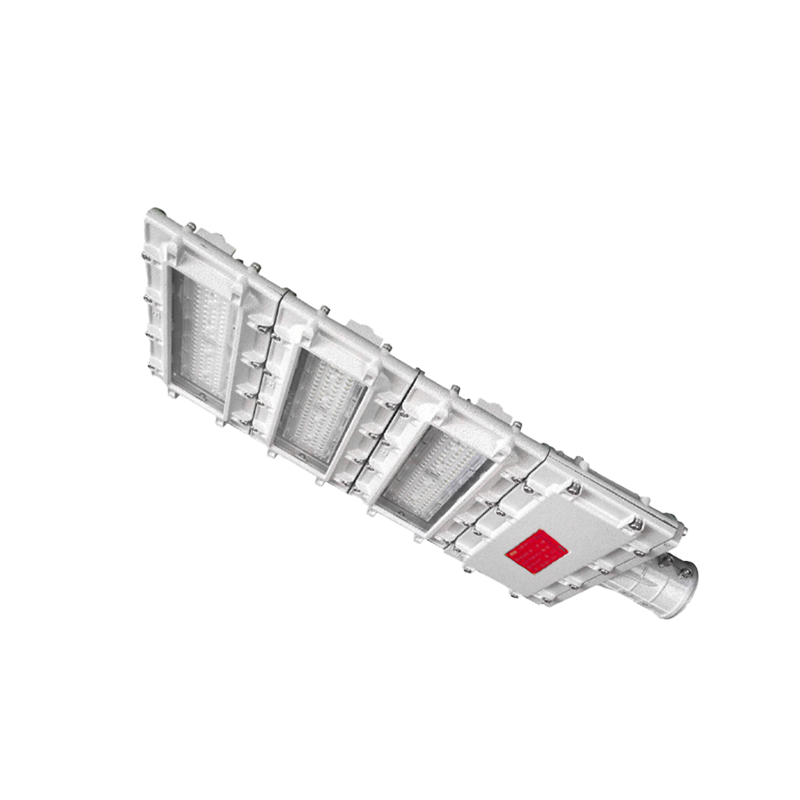

Helon HLBT03 LED Flood Light Explosion Proof

Description

Helon HLBT03 adalah produk lampu LED floodlight explosion proof yang terang dan kokoh, terbuat dari material alumunium alloy khusus yang diperkuat kaca pelindung tahan tekanan 4 joule, cocok untuk penerangan outdoor di site area industri minyak dan gas, kilang minyak, dan berbagai industri rawan ledakan lainnya.

Produk dari Helon Explosion Proof telah terpasang dengan sangat baik di berbagai industri klasifikasi hazardous area seperti industri minyak dan gas (oil and gas), petrokimia, oleokimia, dan sebagainya, dan telah mengantongi berbagai sertifikasi explosion proof seperti IECEx dari IEC, ATEX dari Cenelec dan EN, dan China explosion proof yang telah dipakai dan diakui secara internasional di lebih dari 50 negara seperti Timur Tengah, Asia Tenggara, Rusia, Kazakshtan dan Afrika.

Kami menyediakan lampu highbay dan lowbay explosion proof (biasa dikenal sebagai lampu gantung / pendant light explosion proof), floodlight explosion proof (lampu sorot), lampu tube light (TL) explosion proof, warning light / caution light explosion proof, inspection light explosion proof, hingga emergency light/lampu darurat explosion proof.

PT Helon Internusa Flamindo umumnya memberikan layanan gratis jasa pengiriman ke seluruh Indonesia, namun diprioritaskan pengiriman ke wilayah Jabodetabek (Jakarta, Bogor, Tangerang, Depok, Bekasi) dan sekitarnya seperti Karawang, Cilegon, Serang, Rangkasbitung, Indramayu, Cilacap, Tuban, dan sekitarnya.

Helon HLBT03 LED Flood Light Explosion Proof

792.1 KB

HLBT03 Series Explosion-proof LED Floodlights

Ex marking	Gas	Ex II2 G Ex db eb op is IIB T6/T5 Gb	Ex db eb op is IIB T6/T5 Gb	Ex d e IIB T6/T5 Gb
		Ex II2G Ex db eb op is IIB+H2 T6/T5 Gb	Ex db eb op is IIB+H2 T6/T5 Gb	Ex d e IIB+H2 T6/T5 Gb
	Dust	Ex II2 D Ex tb op is IIIC T80/T95℃Db	Ex tb op is IIIC T80/T95℃ Db	Ex tD A21 IP66 T80/T95℃
Conformity to standards		IEC60079-0,IEC60079-1,IEC60079-7,IEC60079-28,IEC60079-31 EN60079-0,EN60079-1,EN60079-7,EN60079-28,EN60079-31 GB3836.1,GB3836.2,GB3836.3,GB12476.1,GB12476.5
Structure Material	Enclosure	Aluminum alloy enclosure,powder coated,industrial grey with dark lines texture(RAL7035)
	Transparent cover	Tempered glass,resistant to 4Jimpact
	LED power	Wide voltage input(90~305VAC),constant power output,power factor >0.98.With protection functions of constant current,over current,open circuit,short circuit,surge prevention,etc.
	Optical lens	Floodlight type and street type is 136×78°as standard, Spotlight type and high pole type is 60°as standard, Customizable:30X70°,25°,90°,120°

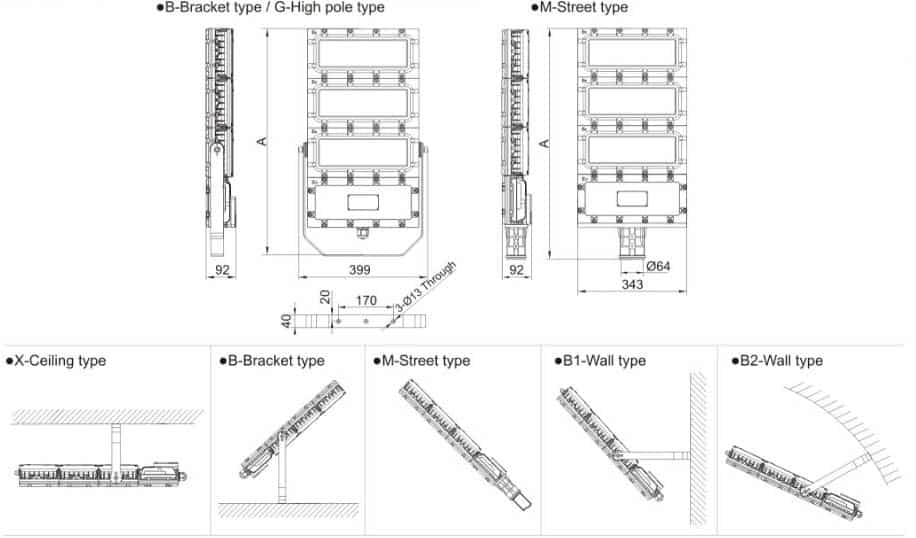

	Adjustable angle	Specially designed angle adjusting mechanism can adjust the irradiation angle by requirements,and the lamp body can be installed horizontally or on the wall
	Exposed fastener	Stainless steel
Light source	Specification	LED (Cree),multiple arrangement,luminous efficiency ≥140 Im/W,color rendering ≥70
	Power (W)	LED:50W,90W,100W,150W,200W,225W,250W
	LED (CCT) color temperature	Cool white:5700K (default) Note:Warm white (3000K)and natural white (4000K)can be customized,please note it when ordering.
Rated voltage		220,230,240VAC
Frequency		50/60Hz
Degree of protection		IP66
Ambient temperature		-40℃~+40℃:T6,-40℃~+55℃:T5
Terminal block		3X1.5~4mm²(L+N+PE)
Cable entries		1-M25X1.5
Applicable cable outer diameter		φ9~φ14(mm)
