Helon BAY51 LED Tube Light Explosion Proof

Description

Helon BAY51 adalah lampu LED explosion proof untuk area hazardous / rawan ledakan yang menggunakan material aluminium alloy dan cover glass reinforced plastic (GRP) dengan sertifikasi China Ex (GB) serta perlindungan IP66. Lampu ini cocok untuk kebutuhan indoor industrial dan sebagian area outdoor tertentu, serta tersedia opsi emergency lighting hingga 90 menit.

Produk Helon Explosion Proof telah digunakan di berbagai industri oil & gas, petrokimia, dan oleokimia dengan dukungan sertifikasi internasional seperti IECEx, ATEX, dan China Ex yang digunakan di lebih dari 50 negara.

PT Helon Internusa Flamindo menyediakan berbagai lampu explosion proof untuk area hazardous seperti highbay dan lowbay pendant light, floodlight/lampu sorot, tube light (TL), warning light, inspection light, hingga emergency light explosion proof untuk kebutuhan industri oil & gas, petrokimia, manufaktur, dan area rawan ledakan lainnya.

Pengiriman tersedia ke seluruh Indonesia dengan prioritas wilayah Jabodetabek dan kawasan industri sekitarnya seperti Karawang, Cilegon, Serang, Indramayu, Cilacap, hingga Tuban.

Helon BAY51 LED Tube Light Explosion Proof

1.2 MB

Download Helon BAY51 LED Tube Light Explosion Proof

Ex marking	Gas	Ex d e IIB T6/T5 Gb
	Dust	Ex tD A21 IP66 T80/T95℃
Conformity to standards		GB3836.1,GB3836.2,GB3836.3,GB12476.1,GB12476.5
Structure Material	Enclosure	Aluminum alloy enclosure,powder coated,industrial gray with dark lines texture (RAL7035
	Protective grid	Steel wire powder coated(white),or stainless steel
	Tube Replacing	Special structure,quick lamp tube replacement.Lamp can beset to adjustable mode by requirement,easy to release one side to replace light tube.
	Ballast	The fluorescent lamp is an inductive ballast
	LED tube	Long serves life,energy saving,power factor ≥0.98,Wide voltage input (180～265vac), constant power output,with constant current,open circuit,short circuit protection function
	Emergency unit	Explosion-proof emergency unit,when the power supply is off,the lamp will automatically switch to the emergency lighting state
	Exposed fastener	Stainless steel
Light source	Specification	T8 fluorescent tube		T8 LED tube
	Power (W)	18WX1	18WX2	9WX1	9WX2
		36WX1	36WX2	18WX1	18WX2
	Ex marking	Ex de IIB T5 Gb		Ex de lIB T6 Gb
		Ex tD A21 IP66 T95℃		Ex tD A21 IP66 T80℃
Rated voltage		T8 fluorescent tube:220VAC,50/60Hz
		T8 LED tube:185~265VAC,50/60Hz
Degree of protection		IP66
Ambient temperature		-20℃~+40℃
Terminal block		3X1.5～4mm²(L+N+PE)
Cable entries		2-G1/2,2-G3/4(Optional)
Available cable outer diameter (mm)		G1/2:φ8~φ10 (mm),G3/4:φ10~φ14(mm)
Emergency unit technical parameters	Emergency unit	Dedicated emergency controller and battery pack,with with protection function of over charge and over discharge.
	Emergency power (W)	T8 fluorescent tube:18WX1,36WX1 T8 LED tube:9WX1,18WX1
	Emergency starting time	0.3s
	Charging time	24h
	Emergency lighting time	90min

Size(mm) Type	L	L1
BAY51-D-18(E9)(J)	797	615
BAY51-S-18(E9)(J)
BAY51-D-36(E18)(J)	1407	1225
BAY51-S-36(E18)(J)

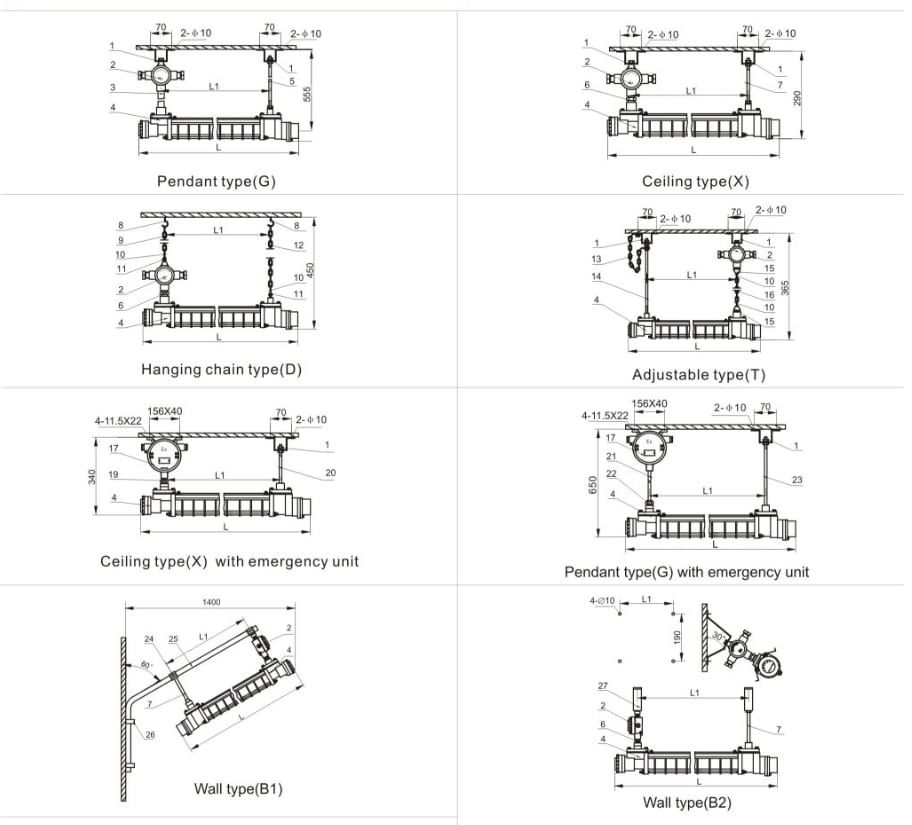

No.	Item	Remark	No.	Item	Remark
1	Mounting bracket		15	Compression nut	G1/2,with hook
2	Explosion-proof terminal box	BAY51-AH	16	Chain	Length:58mm
3	G1/2 Steel pipe	Length:300mm	17	Explosion-proof emergencyUnit
4	BAY51-(E)Series Explosion-proof Light Fittings for FluorescentLamp		18	Steel pipe	G1/2
5	M8 screw rod	Length:400mm	19	Explosion-proof pipe joint	G1/2 male-G3/4 male
6	Explosion-proof pipe joint	G1/2 male-G1/2 male	20	M8 screw rod	Length:200mm
7	M8 screw rod	Length:140mm	21	G3/4 Steel pipe	Length:300mm
8	Hook	Provided by user	22	Explosion-proof pipe joint	G1/2 male-G3/4 female
9	Chain	Length:180mm	23	M8 screw rod	Length:500mm
10	Clasp		24	Pipe clamp	G11/4
11	Eyebolt		25	Wall type pole
12	Chain	Length:300mm	26	Fixed pipe clampG11/4	Provided by user
13	Chain	Length:500mm,with claspX2,mounting footX2	27	Mounting bracket (30°)
14	M8 screw rod	Length:320mm
