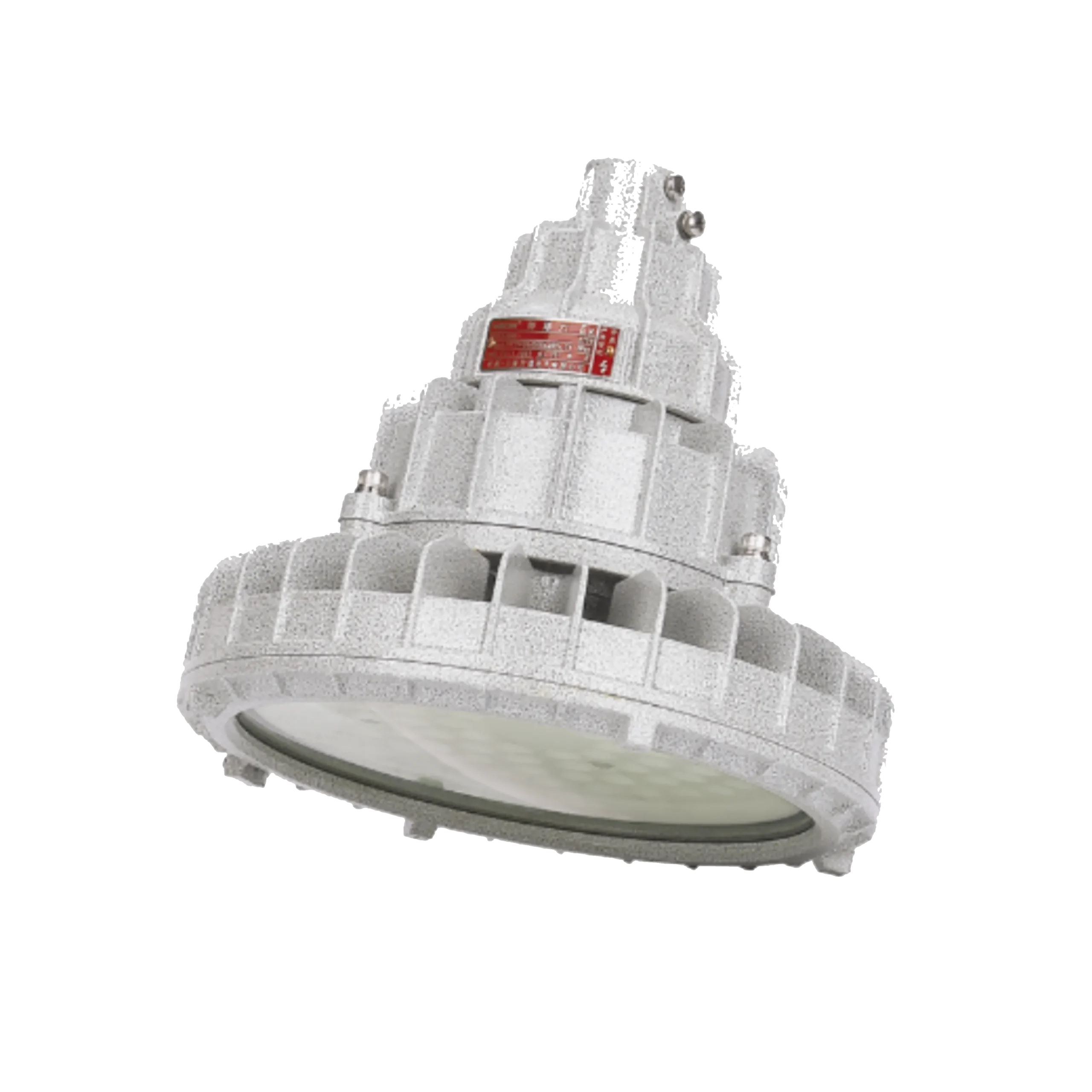

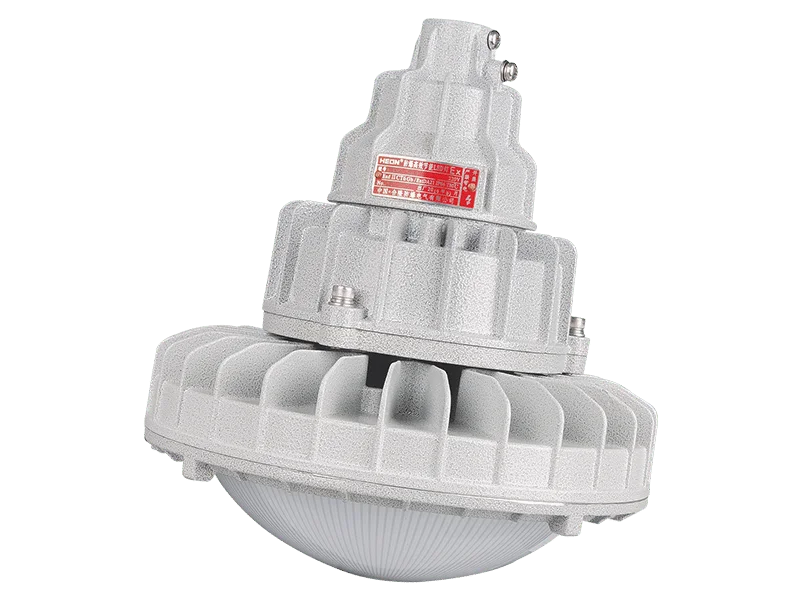

Helon HLBD56 LED High Bay Explosion Proof Lighting

Helon HLBD56 LED High Bay Explosion Proof Lighting

Explosion Protection Certified

China Ex (GB)

Ex Marking Sign

Ex d e IIC T6 Gb
Ex tD A21 IP65 T80°C

Material

Enclosure : Bending steel plate, powder coated, white color, or bending stainless steel plate
Transparent cover : Tempered glass, resistant to 4 Joule impact
Exposed fastener : stainless steel

Working Temprature

Ex db IIC T6 Gb
Ex tD A21 IP66 T80°C

Light source and power

LED: 10W, 20W, 30W, 40W, 50W, 60W, 70W, 80W, 100W, 120W

Application Zone

Zone 1 and Zone 2
Zone 21 and Zone 22
IP66

Category:

Description

Helon HLBD56 merupakan lampu highbay/spotlight berstandar explosion proof yang dirancang khusus untuk memberikan pencahayaan optimal di area industri dengan tingkat risiko tinggi. Model ini dibangun dengan struktur yang tangguh, mampu menahan tekanan air, paparan debu mudah terbakar, serta berbagai potensi pemicu ledakan yang sering muncul di lingkungan operasional berat.

Selain performanya yang andal, HLBD56 juga dikenal ekonomis, menjadikannya pilihan ideal bagi perusahaan yang membutuhkan lampu dengan jangkauan pencahayaan rendah namun area sebaran yang luas. Solusi ini sangat cocok untuk proyek yang membutuhkan efisiensi biaya tanpa mengorbankan kualitas, keamanan, dan ketahanan peralatan.

Sebagai salah satu dari seri lampu explosion proof, Helon HLBD56 telah terpasang dengan sangat baik di berbagai industri klasifikasi hazardous area seperti industri minyak dan gas (oil and gas), petrokimia, termasuk pengolahan bioenergi yang telah memenuhi sertifikasi explosion proof seperti IECEx (IEC), ATEX (Cenelec dan EN), dan China Ex  yang telah diakui dimata internasional di lebih dari 50 negara seperti Timur Tengah, Asia Tenggara, Rusia, Kazakshtan dan Afrika.

Kami menyediakan lampu highbay dan lowbay explosion proof (biasa dikenal sebagai lampu gantung / pendant light explosion proof), floodlight explosion proof (lampu sorot), lampu tube light (TL) explosion proof, warning light / caution light explosion proof, inspection light explosion proof, hingga emergency light/lampu darurat explosion proof.

PT Helon Internusa Flamindo umumnya memberikan layanan gratis jasa pengiriman ke seluruh Indonesia, namun secara diprioritaskan pengiriman ke wilayah Jabodetabek (Jakarta, Bogor, Tangerang, Depok, Bekasi) dan sekitarnya seperti Karawang, Cilegon, Serang, Rangkasbitung, Indramayu, Cilacap, Tuban, dan sekitarnya.

 marking
Gas
Ex d IIC T6 Gb
Dust
Ex tD A21 IP66 T80℃
Conformity to standards
GB3836.1,GB3836.2,GB12476.1,GB12476.5
Structure,
Material
Enclosure
Aluminum alloy enclosure,powder coated,industrial grey with dark lines texture(RAL7035)
Transparent cover
Tempered glass,resistant to 4J impact,W-type glass undergoes a special process,with
a larger irradiation angle,and better anti-glare effect
Protective grid
Steel wire powder coating (white)or stainless steel,please note when needed
LED power
Wide voltage input (90~305VAC),(10W type is 170~250VAC,can be customizd to AC/DC24V,AC/DC36V,20WS type is 90~250VAC),constant power output,powe factor≥0.95.With protection functions of constant current,over current,open circuit short circuit,surge prevention,etc.
Reflector
Secondary optical design,significantly improve the efficiency of the lamp,uniform illumination,no glare
Emergency unit
Explosion-proof emergency unit,when the power supply is off,the lamp will automatically switch to the emergency lighting state
Exposed fastener
Stainless steel
Light
Source
Specification
LED(Cree),multiple arrangement,luminous efficiency≥140 Im/W,color rendering ≥70
Power (W)
LED:10W,20W,30W,40W,50W,60W,70W,80W,100W,120W
LED (CCT)
color temperature
Cool white:5700K (default)Note:Warm white (3000K)and natural white (4000K)
can be customized,please note it when ordering.
Rated voltage
220,230,240V AC(10W type:customizable to 24/36VAC,24/36VDC)
Frequency
50/60Hz
Degree of protection
IP66
Ambient temperature
-20℃~+40℃
Terminal block
3X1.5~4mm²(L+N+PE)
Cable entries
1-G3/4(Pendant type)
2-G3/4(Wall type,pendant type with terminal box,hanging chain type,ceiling type)
4-G3/4(Ceiling type,optional)
Available cable outer diameter(mm)
φ10-φ14(mm)
Emergency
unit
technical
parameters
Emergency unit
Dedicated emergency controller and battery pack,with overcharge and over discharge protection functions
Emergency power(W)
10W,20W,30W,40W,50W,60W,70W,80W,100W,120W
Emergency starting time
0.3s
Charging time
24h
Emergency lighting time
10W~20W:90min,30W~100W:60/90min

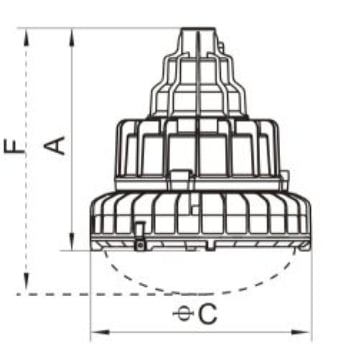

Size(mm)
Power(W)
A
B
B1
φC
D
E
F
10,20S
181
152
170
135
265
189
285
20,30,40,50S
213
184
202
196(W:218)
297
221
270
5,060
221
192
210
240
305
229
270
70
226
197
215
240
310
234
275
80,100,120
236
207
225
292
317
241
288

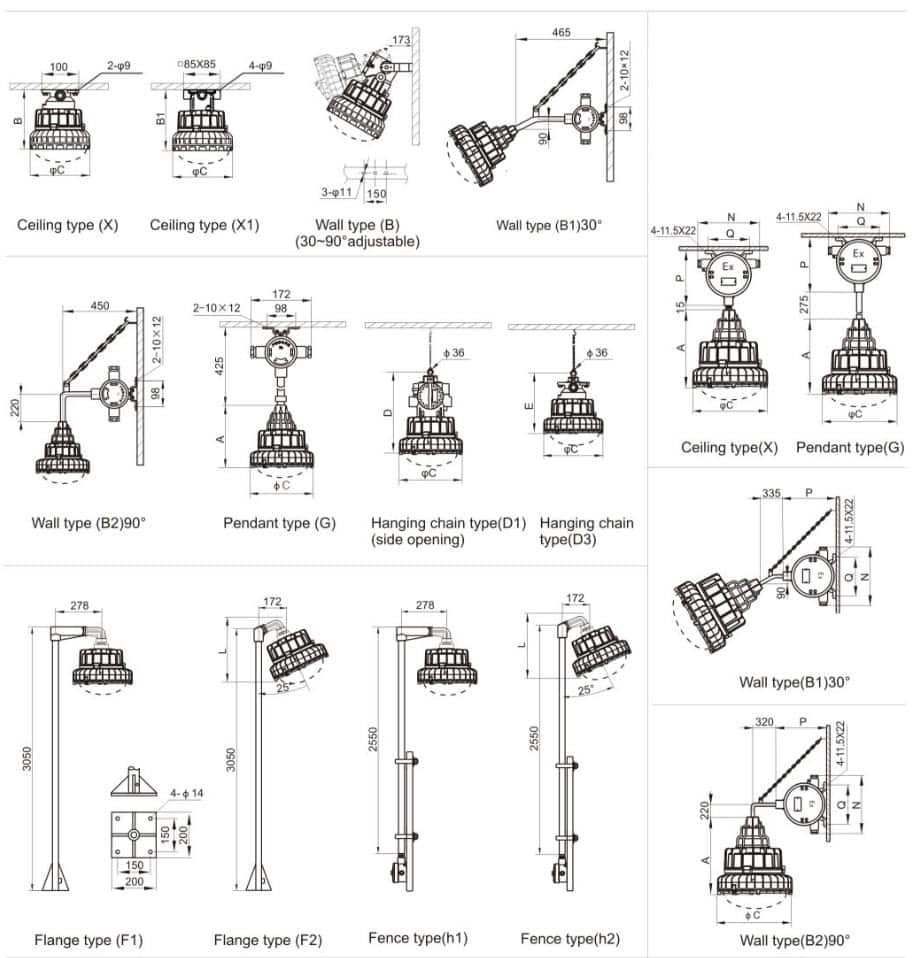

With emergency unit

Power
Size(mm)
  10~50
  (W)
60~100
   (W)
N
225
228
P
187
214
Q
156X40
156X40
