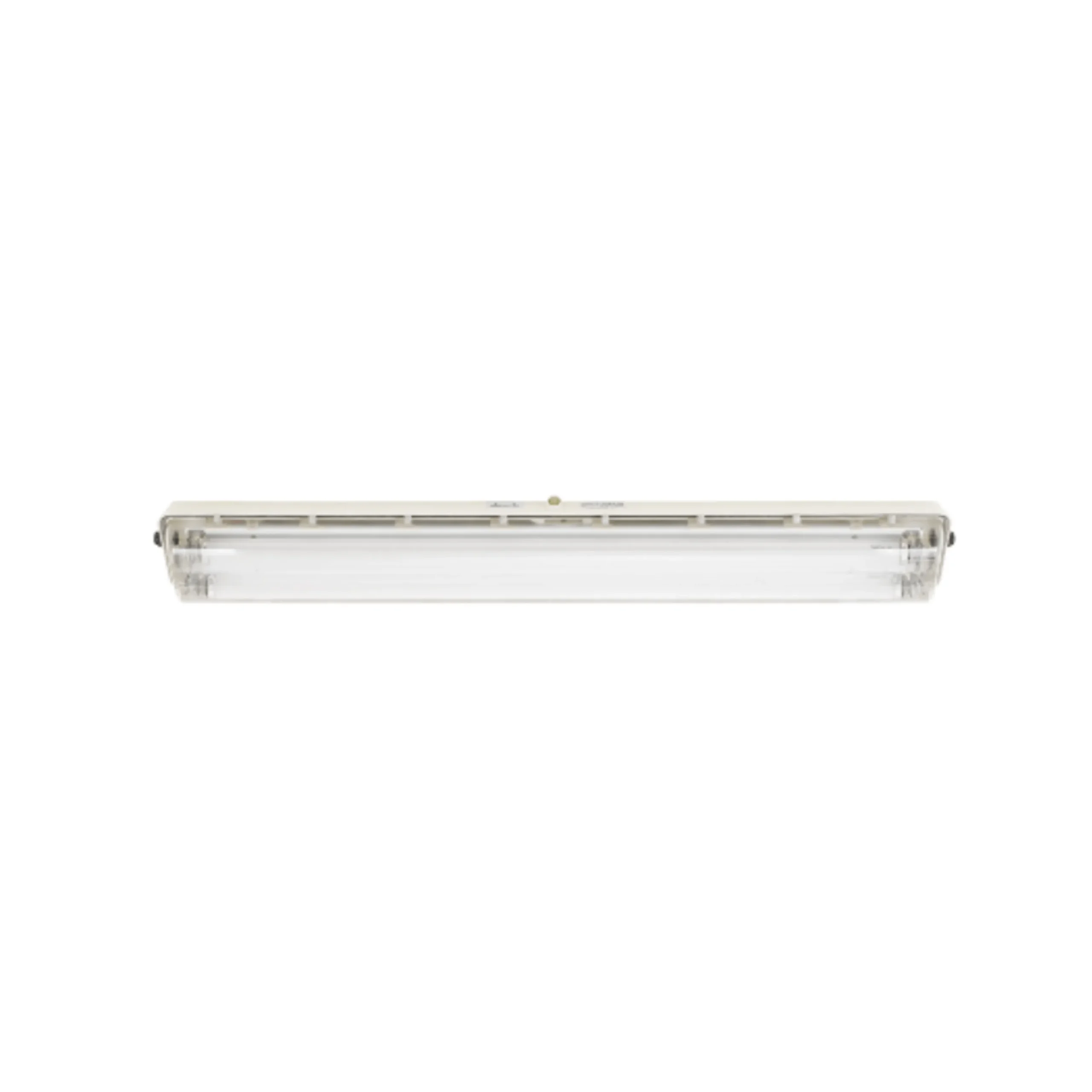

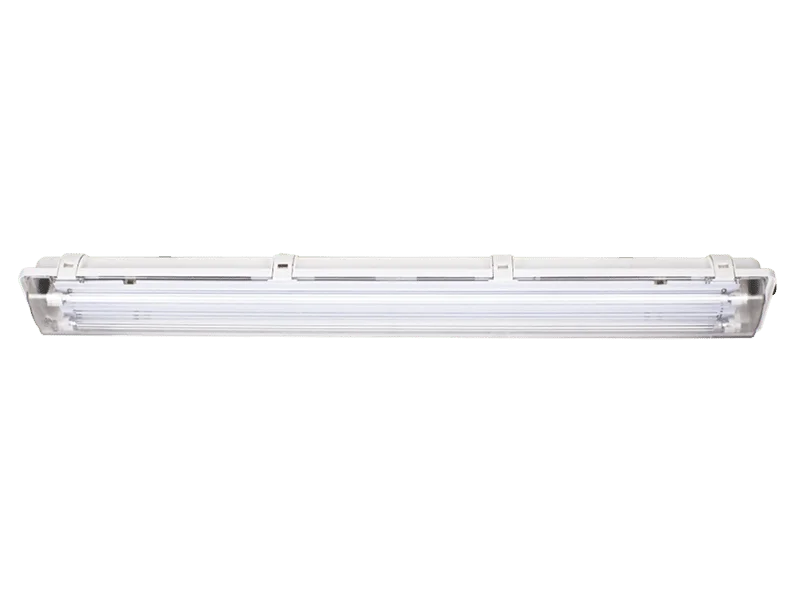

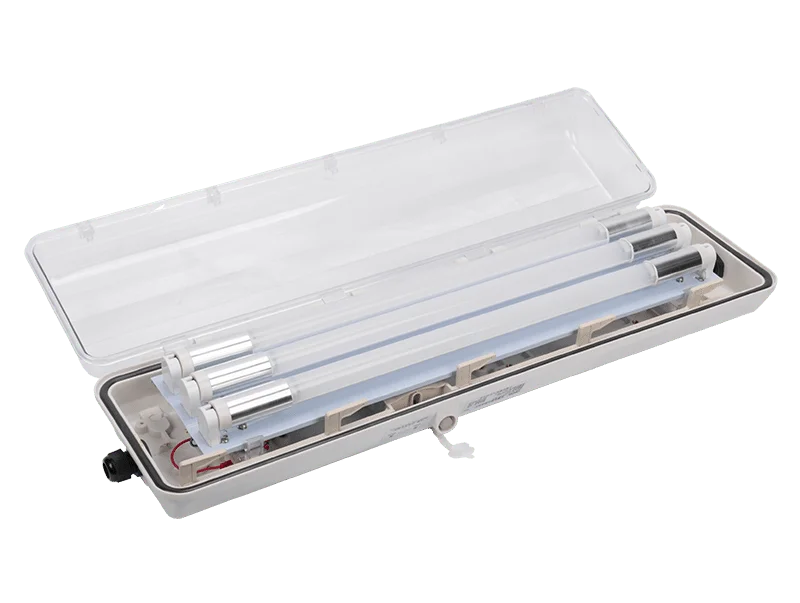

Helon BYS51/52 adalah lampu LED khusus industri klasifikasi rawan ledakan / hazard area yang terbuat dari material GRP (enclosure), Polycarbonate (cover transparan) bersertifikat China Ex (GB) dan IP66. Produk ini diutamakan untuk penggunaan indoor dan sebagian area outdoor dengan jangkauan tertentu, dan dapat dipasangkan fitur emergency lighting yang menyala hingga 90 menit.
Produk dari Helon Explosion Proof telah terpasang dengan sangat baik di berbagai industri klasifikasi hazardous area seperti industri minyak dan gas (oil and gas), petrokimia, oleokimia, yang telah mengantongi berbagai sertifikasi explosion proof seperti IECEx (IEC), ATEX (Cenelec dan EN), dan China Ex yang telah diakui dimata internasional di lebih dari 50 negara seperti Timur Tengah, Asia Tenggara, Rusia, Kazakshtan dan Afrika.
Kami menyediakan lampu highbay dan lowbay explosion proof (biasa dikenal sebagai lampu gantung / pendant light explosion proof), floodlight explosion proof (lampu sorot), lampu tube light (TL) explosion proof, warning light / caution light explosion proof, inspection light explosion proof, hingga emergency light/lampu darurat explosion proof.
PT Helon Internusa Flamindo umumnya memberikan layanan gratis jasa pengiriman ke seluruh Indonesia, namun secara diprioritaskan pengiriman ke wilayah Jabodetabek (Jakarta, Bogor, Tangerang, Depok, Bekasi) dan sekitarnya seperti Karawang, Cilegon, Serang, Rangkasbitung, Indramayu, Cilacap, Tuban, dan sekitarnya.

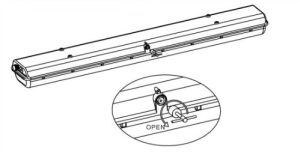

Product features of BYS51:Mechanical interlocking pressing device and automatic power off function:
1. Power supply and emergency power will cut off automatically.when cover was opened with dedicated wrench;
2. The cover will be locked tightly and power supply will restore automatically,when cover was closed
Accessories list
The installation accessories required by different installation methods see the table below; Manufacturer does not provide when marked “provided by user”
Installation Method
Item
Remark
Qty
Purchase code
Weight(kg)
X-Ceiling type
Mounting bracket
2
2.14.0706003
0.1
D-Hanging chain type
Hook
Provided by user
2
/
Chain
2
2.14.1000101
0.1
Spring buckle
2
2.18.1604091
0.006
Eyebolt
2
2.18.1100021
0.04
Connecting plate
2
2.14.2206003
0.04
B1-Wall type
Bending poleG11/4
1
4.02.901.0141(18W)
4.5
4.02.901.0141(36W)
Explosion proof flexible pipe or cable
Provided by user
1
/
Fixed pipe clamp
Provided by user
2
/
Pipe clamp
2
2.12.5900010
0.12
Connecting plate
2
2.14.2206003
0.04
B2-Wall type
Mounting bracket(30°)
2
2.14.0706001
0.34
B3-Wall type
Mounting bracket(90°)
2
2.14.0706005
0.9
G1-Pendant type
(side inlet)
Mounting bracket
2
2.14.0706051
0.06
M8 screw rod
2
2.19.1208236
0.1
Connecting plate
2
2.14.2206003
0.04
G2-Pendant type
(up inlet)
Mounting frame
1
2.14.0706051
0.06
M8 screw rod
1
2.19.1208901
0.1
Connecting plate
1
2.14.2206003
0.04
Explosion proof junction box
1
1.03.101.00001
0.24
Steel pipe G3/4
1
4.02.901.0113
0.28
Connector in G3/4 out M25X1.5
1
2.12.6021004
0.08
F-Flange type
Explosion proof flexible pipe or cable
Provided by user
1
/
Pole of Flange type G11/4
1
1.02.901.00147(18W)
11
1.02.901.00148(36W)
Pipe clamp
2
2.12.5900010
0.12
Connecting plate
2
2.14.2206003
0.04
h-Fence type
Explosion proof flexible pipe or cable
Provided by user
1
/
Pole of Fence type G11/4
1
1.02.901.00144(18W)
6.4
1.02.901.00145(36W)
U-clamp
Provided byuser
2
/
Explosion proof pipe joint G3/4
Provided by user
1
1.03.209.00022
0.06
Explosion proof junction box
Provided by user
1
1.03.101.00023
0.24
Pipe clamp
2
2.12.5900010
0.12
Connecting plate
2
2.14.2206003
0.04
Outline and Installation Dimension ofT8 fluorescent lamp (Dimensions in mm)
Size(mm)
Type
A
B
C
D
BYS51-18X(1～3)(J)
642
798
120
208
BYS51-9X(1～3)E(J)
BYS51-36X(1～3)(J)
800
1380
120
208
BYS51-18X(1～3)E(J)
No.
Item
Remark
No.
Item
Remark
1
Mounting bracket
13
Mounting bracket(90°)
2
Explosion-proof fluorescent light
14
Mounting bracket
3
Hook
Provided by user
15
Screw rod
M8
4
Chain
16
Explosion-proofterminal boxes(IIC)
AH-G3/4dC
5
Hook
Provided by user
17
Steel tube
G3/4
6
Ring bolt
18
Connecting parts
7
Installation parts
19
Flange type pole
G11/4
8
Bending pole
G11/4
20
Fence type pole
G11/4
9
Explosion-proof flexible conduit
Provided by user
21
U pipe clamp
Provided by user
10
Fixed clamp
Provided by user
22
Explosion-proof pipe joint
G3/4
11
Clamp
23
Explosion-proof terminal boxes(IC)
AH-C/G3/4C
12
Mounting bracket (30°)

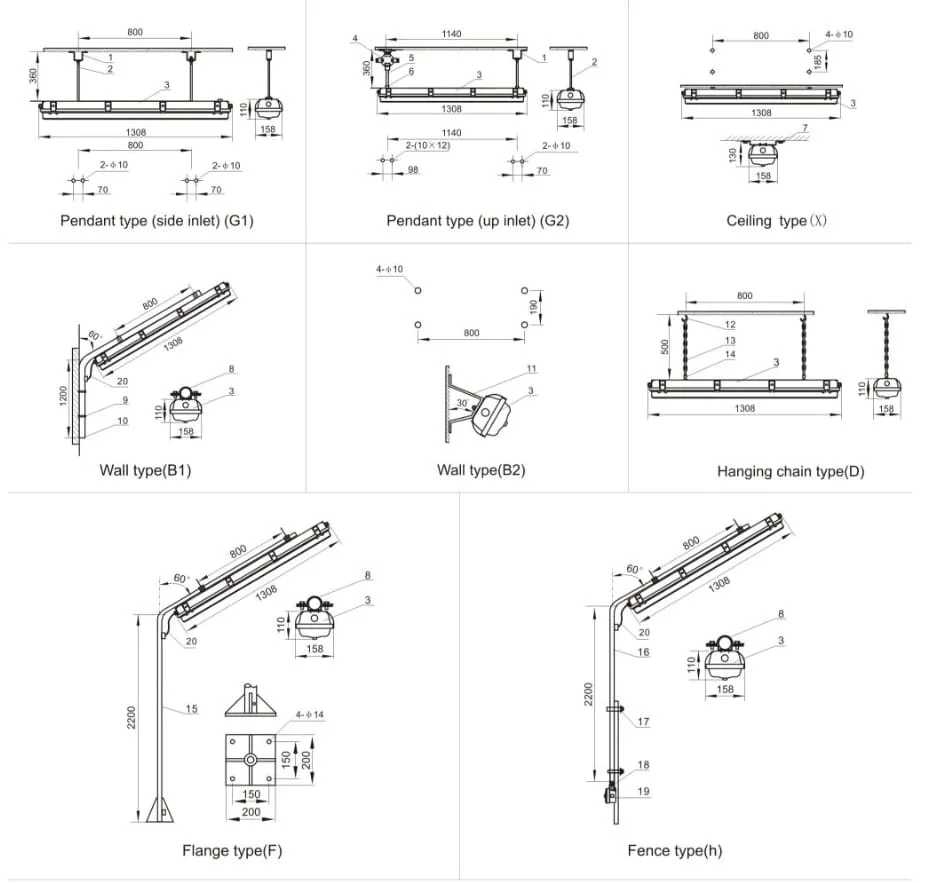

Outline and Installation Dimension ofT5 fluorescent lamp (Dimensions in mm)
